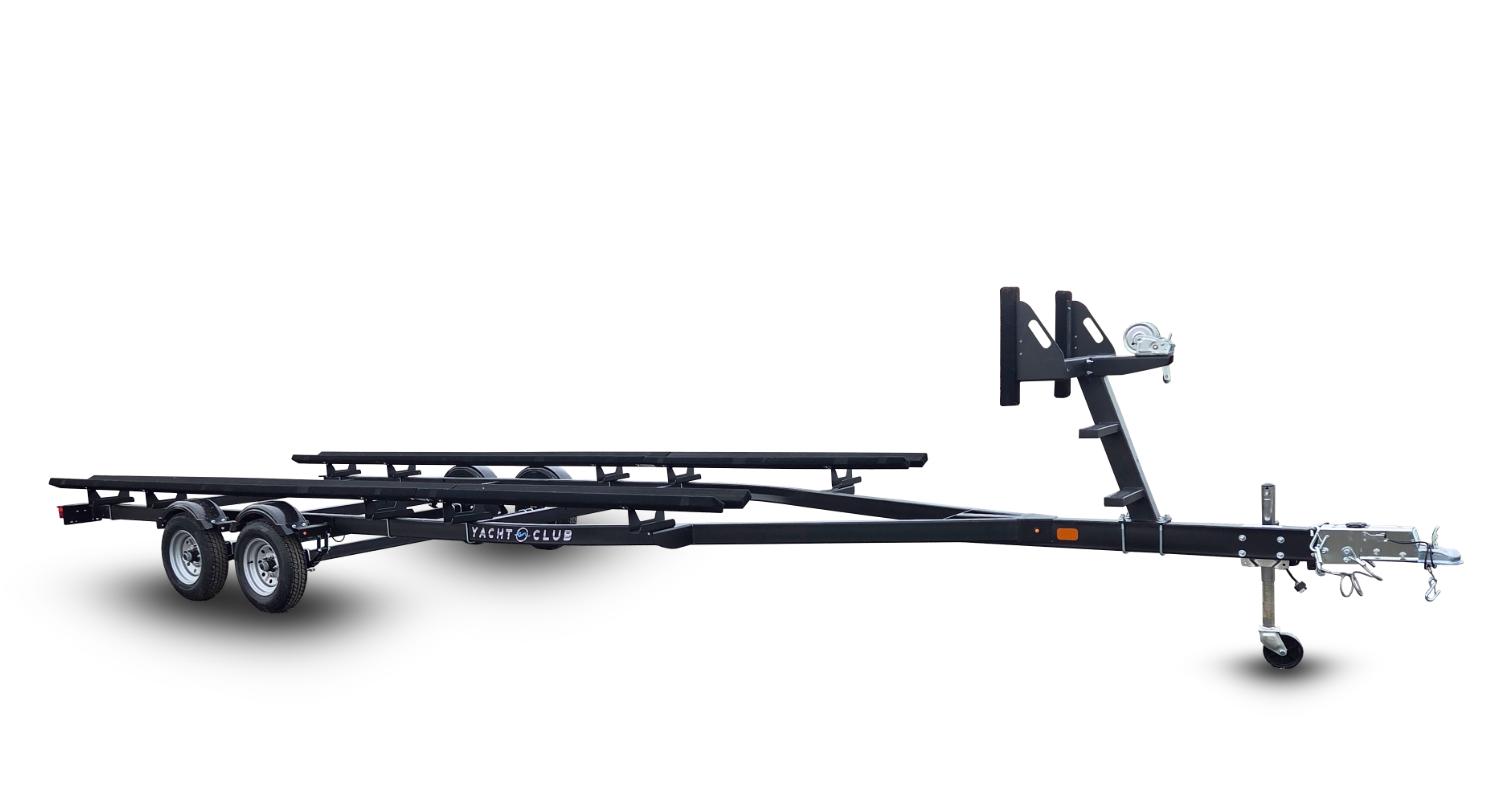

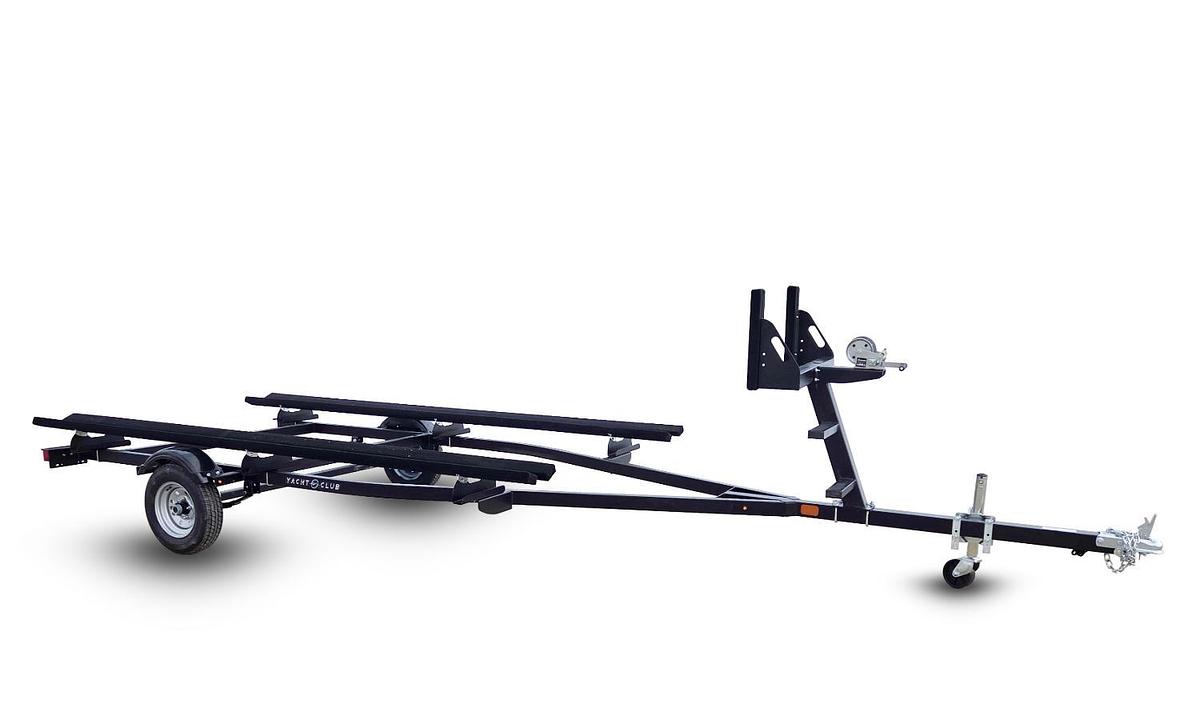

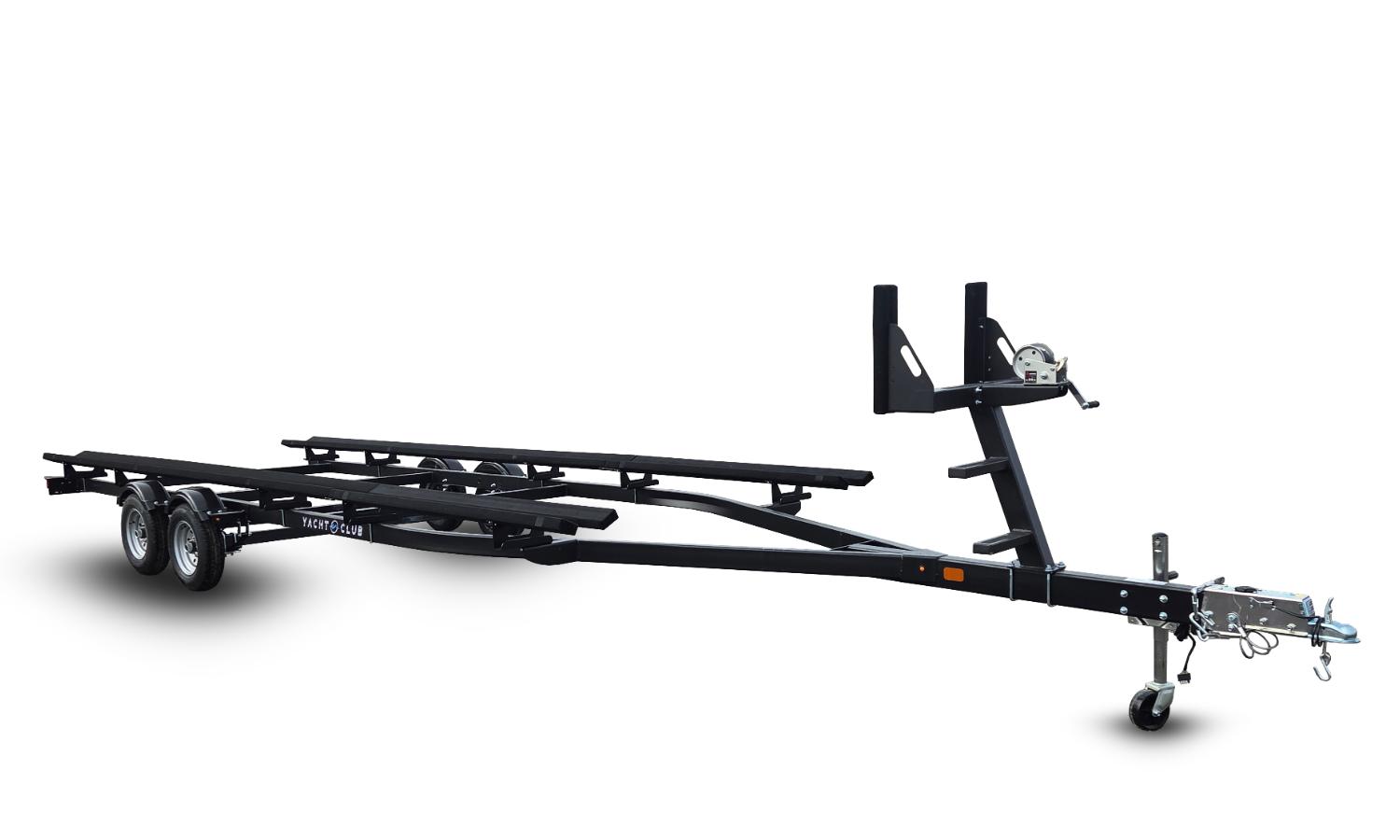

"P" SERIES PONTOON TRAILER

"P" SERIES PONTOON TRAILER

Get Financing

Location:Howell, MI

Contact Us
or
Call +1 800-226-3050

Description

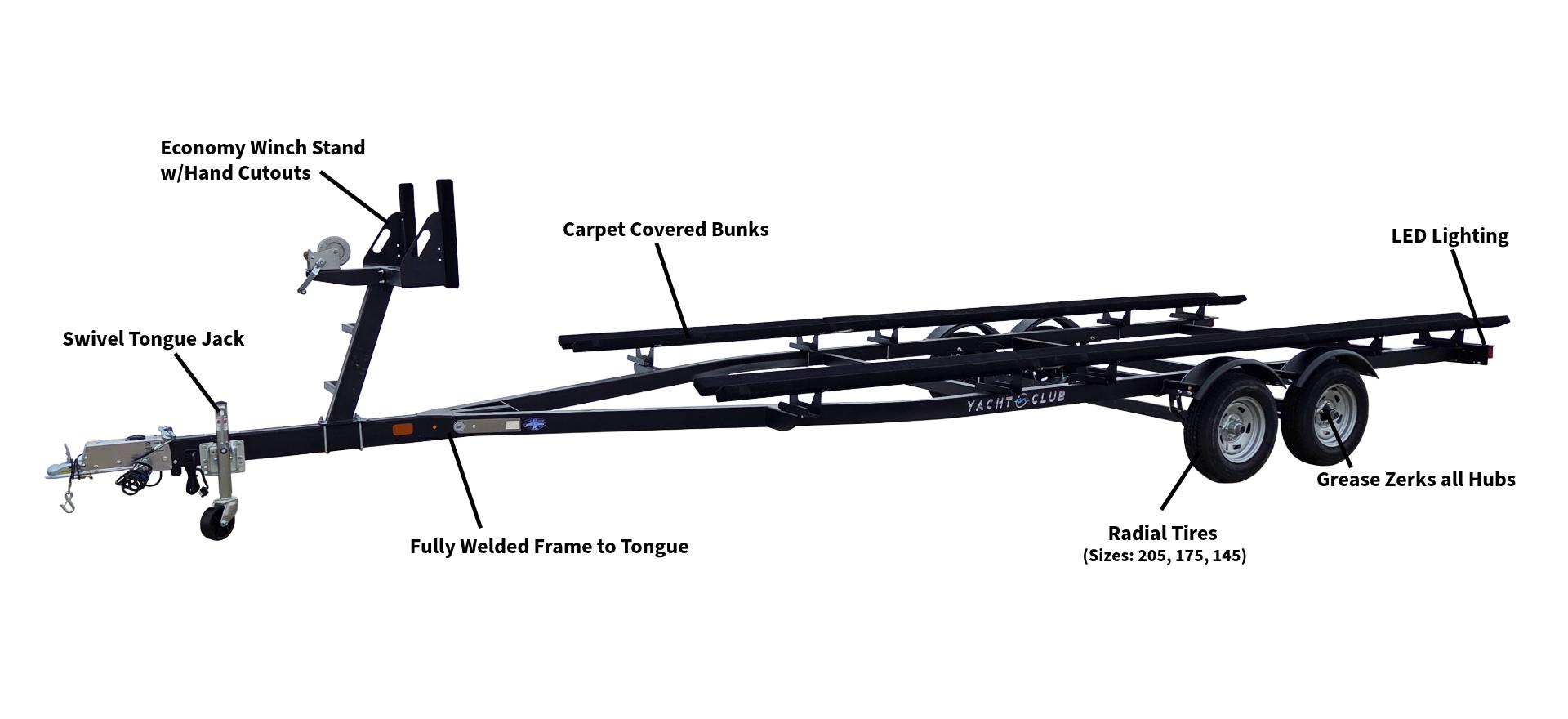

Standard FeaturesGrease Zerks all Hubs

Maintaining your hubs is vital to longevity. Your Hubs should be greased every 12 months or 12,000 miles. Bearings rely on grease to keep out any debris from causing any premature wear to your hub components. With Zerks on every hub you will be able to maintain your trailer easily.

Specifications

ManufacturerYacht Club Trailers
Model"P" SERIES PONTOON TRAILER
ConditionNew

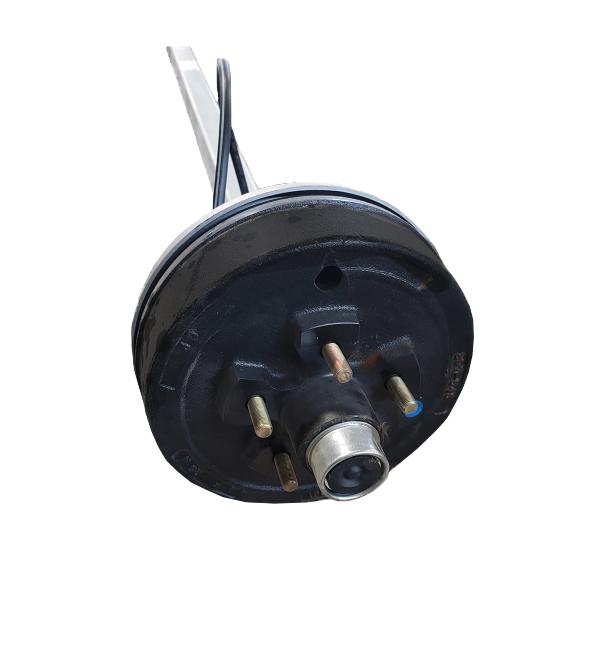

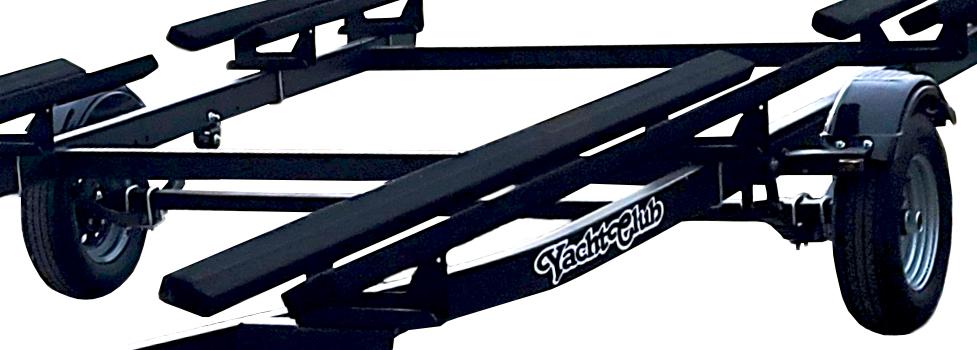

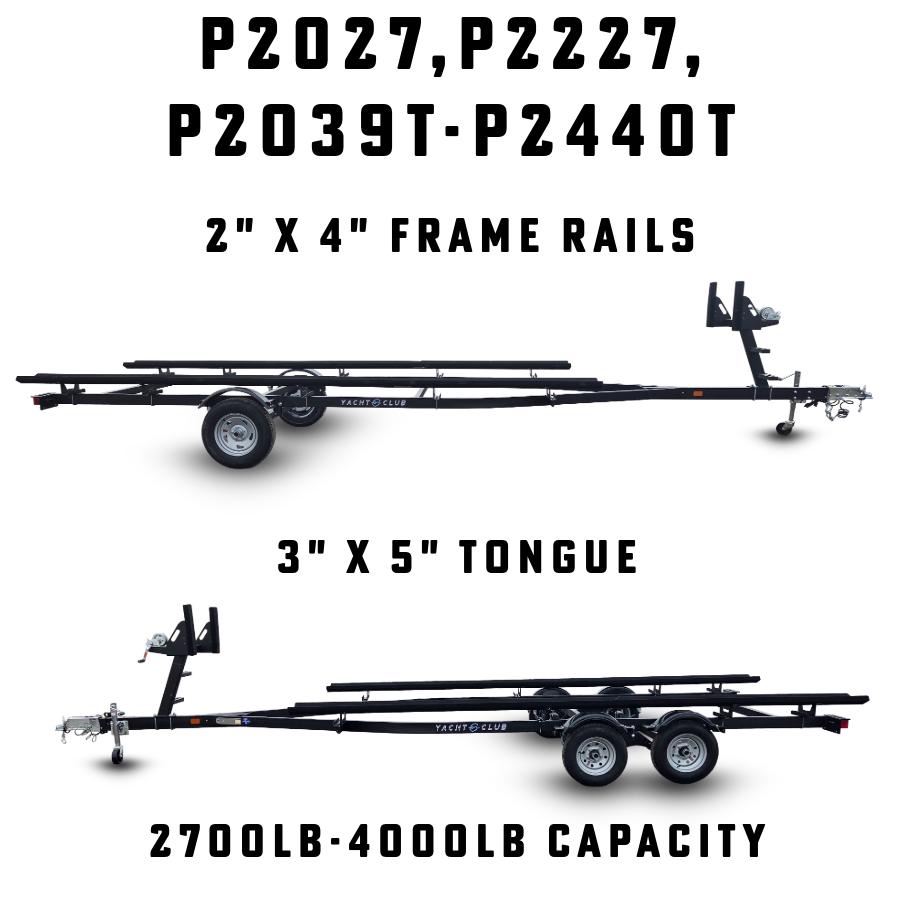

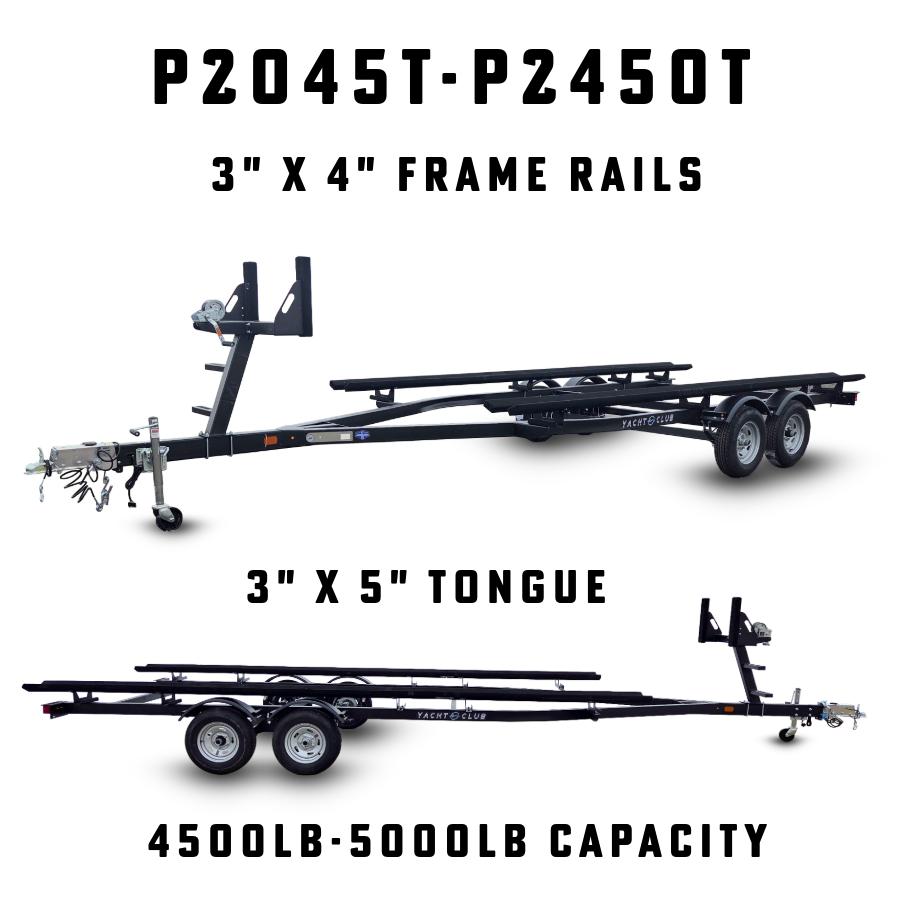

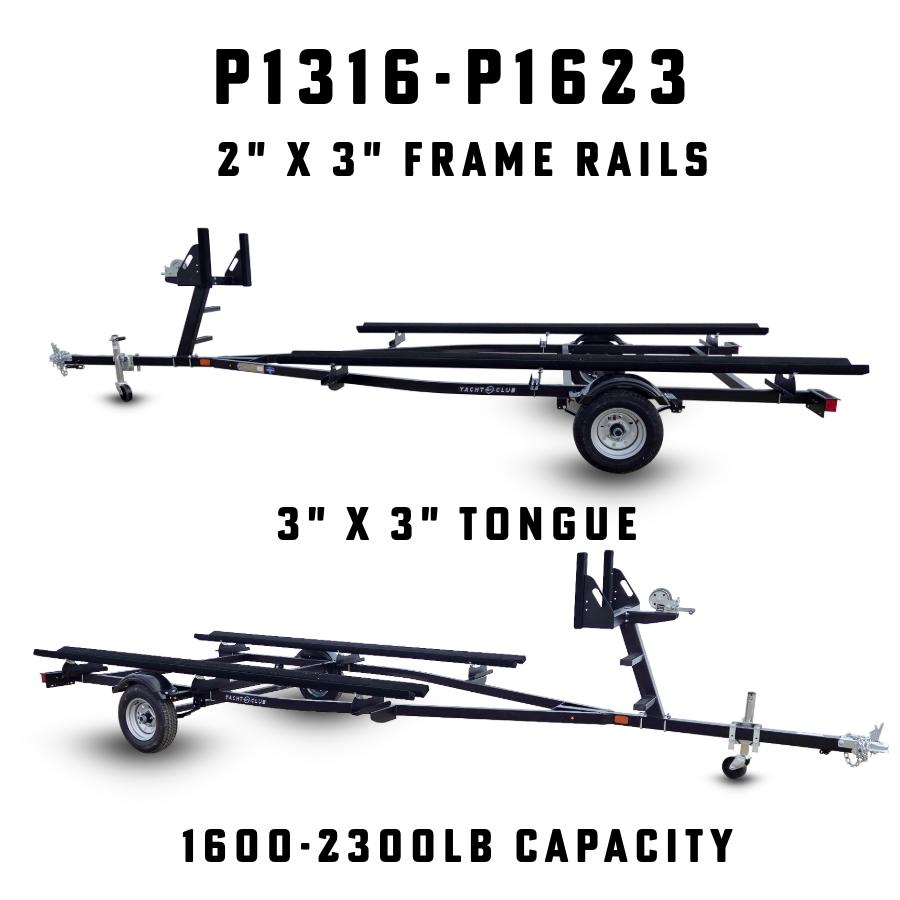

Axles / BrakesP1316: 1/0; P1516: 1/0; P1623: 1/0; P1823: 1/0; P2023: 1/0; P2027: 1/1; P2039T: 2/1 drum; P2040T: 2/1 drum; P2045T: 2/1; P2050T: 2/1 disc; P2223: 1/0; P2227: 1/1; P2239T: 2/1 drum; P2240T: 2/1 drum; P2245T: 2/1; P2250T: 2/1 disc; P2439T: 2/1 drum; P2440T: 2/1 drum; P2445T: 2/1; P2450T: 2/1 disc
Tube LengthP1316: 12-14; P1516: 14-16; P1623: 14-16; P1823: 16-18; P2023: 18-20; P2027: 18-20; P2039T: 18-20; P2040T: 18-20; P2045T: 18-20; P2050T: 18-20; P2223: 20-22; P2227: 20-22; P2239T: 20-22; P2240T: 20-22; P2245T: 20-22; P2250T: 20-22; P2439T: 22-24; P2440T: 22-24; P2445T: 22-24; P2450T: 22-24
Overall LengthP1316: 17' 2"; P1516: 19'3"; P1623: 21'4"; P1823: 22'8"; P2023: 24'8"; P2027: 24'8"; P2039T: 24'8"; P2040T: 24'8"; P2045T: 24'8"; P2050T: 24'8"; P2223: 26'8"; P2227: 26'8"; P2239T: 26'8"; P2240T: 26'8"; P2245T: 26'8"; P2250T: 26'8"; P2439T: 28'8"; P2440T: 28'8"; P2445T: 28'8"; P2450T: 28'8"

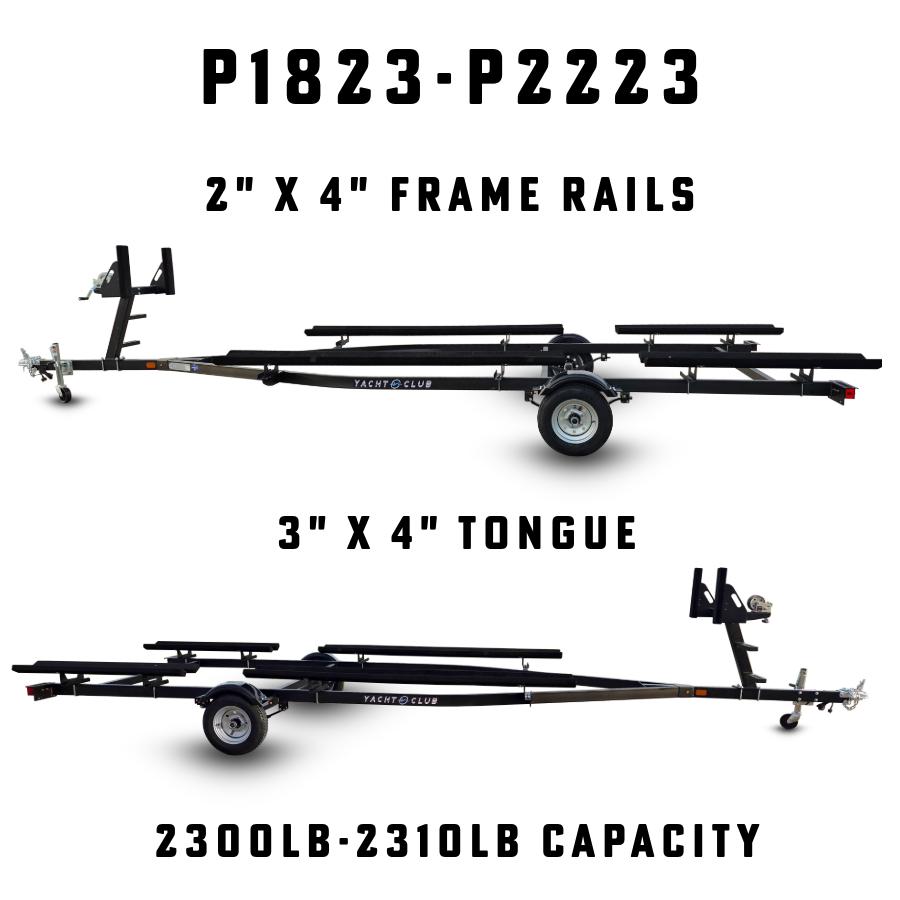

Carrying CapacityP1316: 1600; P1516: 1600; P1623: 2300; P1823: 2300; P2023: 2310; P2027: 2700; P2039T: 4000; P2040T: 4000; P2045T: 4500; P2050T: 5000; P2223: 2300; P2227: 2700; P2239T: 4000; P2240T: 4000; P2245T: 4500; P2250T: 5000; P2439T: 4000; P2440T: 4000; P2445T: 4500; P2450T: 5000
Trailer WeightP1316: 550; P1516: 550; P1623: 600; P1823: 630; P2023: 690; P2027: 720; P2039T: 1000; P2040T: 1000; P2045T: 1020; P2050T: 1020; P2223: 690; P2227: 740; P2239T: 1010; P2240T: 1010; P2245T: 1030; P2250T: 1030; P2439T: 1020; P2440T: 1020; P2445T: 1040; P2450T: 1040
Pontoon WidthP1316: 6' - 8'; P1516: 6' - 8'; P1623: 6'6" - 8'6"; P1823: 8' - 8'6"; P2023: 8' - 8'6"; P2027: 8' - 8'6"; P2039T: 8' - 8'6"; P2040T: 8' - 8'6"; P2045T: 8' - 8'6"; P2050T: 8' - 8'6"; P2223: 8' - 8'6"; P2227: 8' - 8'6"; P2239T: 8' - 8'6"; P2240T: 8' - 8'6"; P2245T: 8' - 8'6"; P2250T: 8' - 8'6"; P2439T: 8' - 8'6"; P2440T: 8' - 8'6"; P2445T: 8' - 8'6"; P2450T: 8' - 8'6"
Tire SizeP1316: 5.30x12C; P1516: 5.30x12C; P1623: 145/R12E; P1823: 145/R12E; P2023: 145/R12E; P2027: 205/R15C; P2039T: 5.30x12D; P2040T: 145/R12E; P2045T: 145/R12E; P2050T: 175/R13D; P2223: 145/R12E; P2227: 205/R15C; P2239T: 5.30x12D; P2240T: 145/R12E; P2245T: 145/R12E; P2250T: 175/R13D; P2439T: 5.30x12D; P2440T: 145/R12E; P2445T: 145/R12E; P2450T: 175/R13D
